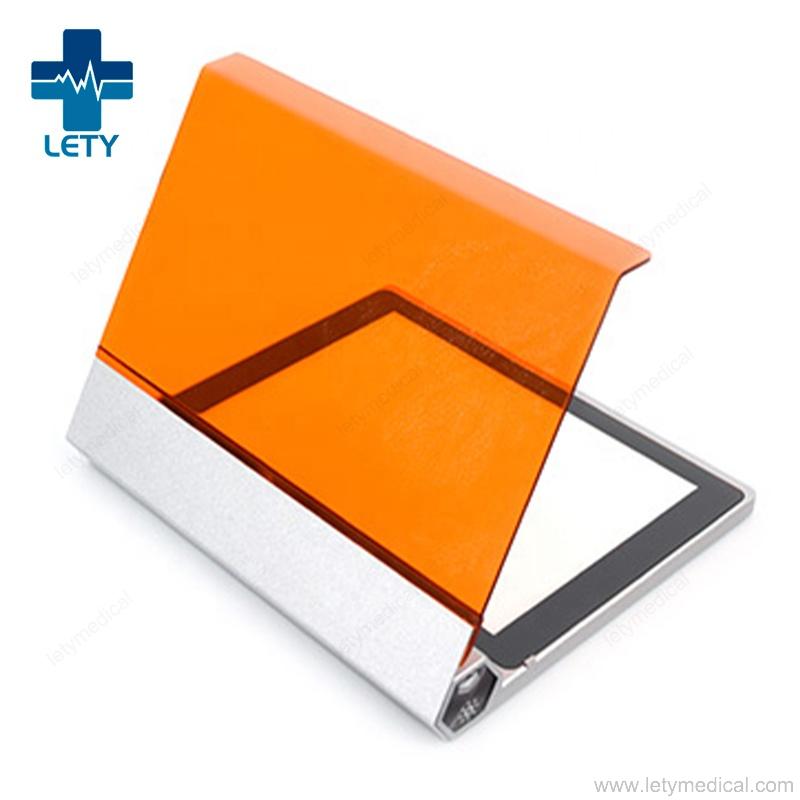

laboratory uv Blue gel electrophoresis uv transilluminator blue light transilluminator

Model:LTL-BLL


Volume (width * length * height): 18.5 x 22 x 3cm
Observable range (width * length): 12 x 18cm
Input voltage: 100-240Vac
Input current: 2.0A
LED light source: Built-in blue light & white light LED module
Built-in blue/white LED module
LED life (hours): >30,000
Scattering wavelength: 470nm
Storage temperature: 25° C
Automatic shutdown: 5 mins
Filter specifications: Amber filter (580nm)



Model: LTL-G5


Overview
This instrument is only for scientific research and only for professionals who understand LED blue light irradiation and its supporting reagents. Please do not look directly at blue light with naked eyes for a long time to avoid retinal fatigue damage. The filter provides a certain amount of blue light protection, and is only designed to protect the personnel operating in front of the instrument, and is used to clearly observe the nucleic acids and proteins in the stained gel.



Features
Safe and non-destructive: avoid the damage of ultraviolet rays to human skin and eyes, and the fragmentation, cross-linking or replacement of nucleic acid fragments caused by ultraviolet radiation;
Wide applicability: It has the best effect when used together with the non-toxic 4S Green Plus nucleic acid dye and Band-Now protein strip staining agent, and it is compatible with other similar products on the market, such as SYBR Green I, GelGreen, SYBR Safe, Goldview, SYBR Gold, SYPRO Ruby, eGFP, Cy2, FITC, EB, etc.;
Simple operation: place the sample in the black glue cutting area, turn on the switch, and the light source will evenly excite the gel sheet, you can see the bright bands for cutting glue, low background interference;
Long life and maintenance-free: The blue LED adopts imported chips and gold wire, with a service life of more than 60,000h, eliminating the trouble of frequent lamp replacement;
Small size: ultra-thin, light, space-saving, can be stuffed into the drawer when used up;
Humanized design: The gel filter plate can be rotated at multiple angles, which is convenient for cutting glue.


Application

Observe the nucleic acid and protein in the stained gel; cut the gel.

Technical specifications
Size L×W×H=280×255×40 mm
Cutting surface size 190×112 mm
Blue light wavelength 440-485 nm
Power DC 24V, 1A power adapter
Blue LED lifetime 60,000 h
Blue LED illumination method, matrix double-sided side illumination
Weight 2 Kg








We supply wide range UV related products.
Gel imaging analysis system
UV Transilluminator
Dark box UV analyzer
Horizontal gel electrophoresis system
Handheld UV Analyzer
Ultra-thin UV Transilluminator
