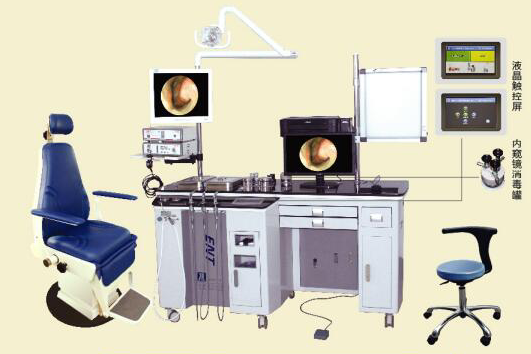

ENT unit with Imaging System
Model: LT-ENT-3202
Normal running conditions:
1. Temperature of Environment: 10℃～45℃
2. Relative Humidity≤80％
3. High Atmospheric Pressure: 86～106 kPa
4. Power: 230±10VAC, 50-60Hz, 1000VA
Technical Parameter:
1) Spray rod, positive pressure of blow device:
0.1Mpa—0.15Mpa; (Adjusting)
2) Negative pressure of suction lube:
≥0.07Mpa; (Adjusting)
3) Suction vacuum pump: 370W;
3000CC main suction apparatus 1pc
4) Compressor pump: 80W 1 pc
5) Power: 230±10VAC, 50-60Hz, 1000VA
6) Preheated anti-fog apparatus: 300W
Configuration:
|
No |
Name |
Quantity |
Remark |
|
1 |
Mainframe |
1pc |
Marble board |
|
2 |
Sprayer |
Curved 1pc Straight 2pcs |
Copper |
|
3 |
Suction device |
1pc |
Copper |
|
4 |
Waste bottle |
1pc |
2500cc |
|
5 |
Projection lamp & balance arm |
1pc≥50W |
(illuminate≥1*104 LUX |
|
6 |
tray |
2pcs |
Stainless steel |
|
7 |
Cotton jar |
4pcs |
Stainless steel |
|
8 |
Anti fog heater |
1set |
|
|
9 |
Liquid medicine bottle |
6pcs |
Glasses |
|
10 |
Endoscope |
2pcs |
Sinoscope & Laryngoscope |
|
11 |
CCD camera |
1 set |
540TV/line |
|
12 |
Cold light source |
1 set |
Xenon light 250W |
|
13 |
Computer |
1 set |
With English software, |
|
14 |
Foot captor |
1 pc |
For PC |
|
15 |
LCD Display |
2 sets |
19’’ LCD |
|
16 |
Medical Monitor |
1 set |
LCD 17’ Samsung |
|
17 |
Color printer |
1set |
HP |
|
18 |
X-ray viewer |
1set |
X ray screen |
CCD Camera
TECHENICAL PARAMETERS for CCD Camera:
|
Item |
CCD camera LT-100 |
|
Camera |
1/3’’D |
|
Pelx H×V |
NTSC: 768H×494V 410,000 |
|
PAL: 752H×582V 440,000 |
|
|
Horizontal definition |
580TV lines |
|
Electronic Shutter |
NTSC: 1/60~1/100,000 sec |
|
PAL: 1/50~1/100,000 sec |
|
|
Minimum illumination |
0.5 LUX |
|
Synchronization manner |
Inner-synchronization |
|
Signal-to-Noise |
More than 48dB |
|
Plus control |
Automatic |
|
Video output |
1.0Vp-p, 75Ωcomplex signal |
|
Adapter(Either) |
OES or rigid |
|
Connection Cable |
2.5m normal. And special length needs order. |
|
Power |
AC220+10% |
|
Power Consumption Standard |
DC12V (±10%), Max. 160mA |
|
Dimension(width” height” depth) |
304mm×95mm×310mm |
|
Operating temperature |
14 F ~ 122 F (-10 C ~ +50 C) |
|
Storage temperature |
-4 F ~ 140 F (-20 C ~ +60 C) |
|
Work humidity |
Less than 8o% |
|
White Balance |
manual |
XENON Cold Light Source 250W (Fiber optic cable 2m)
1. Muti-specifications light.
2. Adjust brighting
3. Stable light output
4. long bulb life.
5. 2000mm fibre cable
TECHENICAL PARAMETERS for XENON Cold Light Source:
1. Voltage of power supply: 220V 50Hz (Fuse: 5A)
2. Input power: 470VA
3. J. equipment type: 1 BF
4. Power of xenon lamp: 250 W
5. Effective luminance of xenon lamp: ≥5800,000LX
6. Xenon lamp color temperature: 5600K
7. Noise: <55dB
8. Chassis temperature:<55℃
9. Under normal operating temperature of the continuous
One Rhinoscope Endoscope
