  • 12 Channel ECG Machine LT-2212

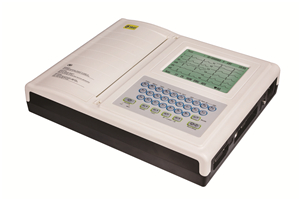

12 Channel ECG Machine LT-2212

12 Channel ECG Machine LT-2212

  • 215mm 6/12 channel format recording
  • 320×240 graphic 5.7 inch LCD
  • 110-230V, 50/60Hz power supply. Li-ion Battery
  • Alphabetic keyboard
  • Product description: Welcome to inquire more informations online
  • INQUIRY

12 Channel ECG Machine

Model: LT-2212

Description:

● Manual / Auto / Analysis working modes

● 215mm 6/12 channel format recording.

Automatic interpretation
● 320×240 graphic 5.7 inch LCD
● Alphabetic keyboard
● 110-230V, 50/60Hz power supply. Li-ion Battery
● 20cases save / replay (Expandable)

Built in USB/RS 232 port



Technical Specification:


Lead

Standard 12 leads

Time constant

≥3.2s

lead acquisition

12bit/1000Hz(synchronously 12 leads)

Frequency response

0.05160Hz(-3db)

Work mode

MAN, AUTO, ANALYSIS Modes

Noise level

15μVp-p

Filter

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter: 0.15Hz (Adaptive)

Inter-channel Interference

0.5mm

CMMR

100dB (with AC FILTER)

Sensitivity

51020mm/mV

Input circuit

Floating; Protection circuit against

Defibrillator effect

Recording mode

3ch+++, 6ch, 6ch+, 12ch

Default Man. Mode is 3ch+ format

Default Auto. Mode is 12ch format

Input Impedance

≥50MΩ

Paper speed

6.25, 12.5, 25, 50mm/s±3

Input circuit current

0.05μA

Paper

215 mm Roll

Patient current leakage

10μA

Communication

RS232/ USB port

Calibrating voltage

1mV±2

Power Supply

AC 110-230V(±10%),50/60Hz±1Hz),60VA

DC Built-in rechargeable battery,14.4V(4400mmAh)

Voltage tolerance

±500mV

Dimension/Weight

330mm×270mm×72mm/3.8Kg
