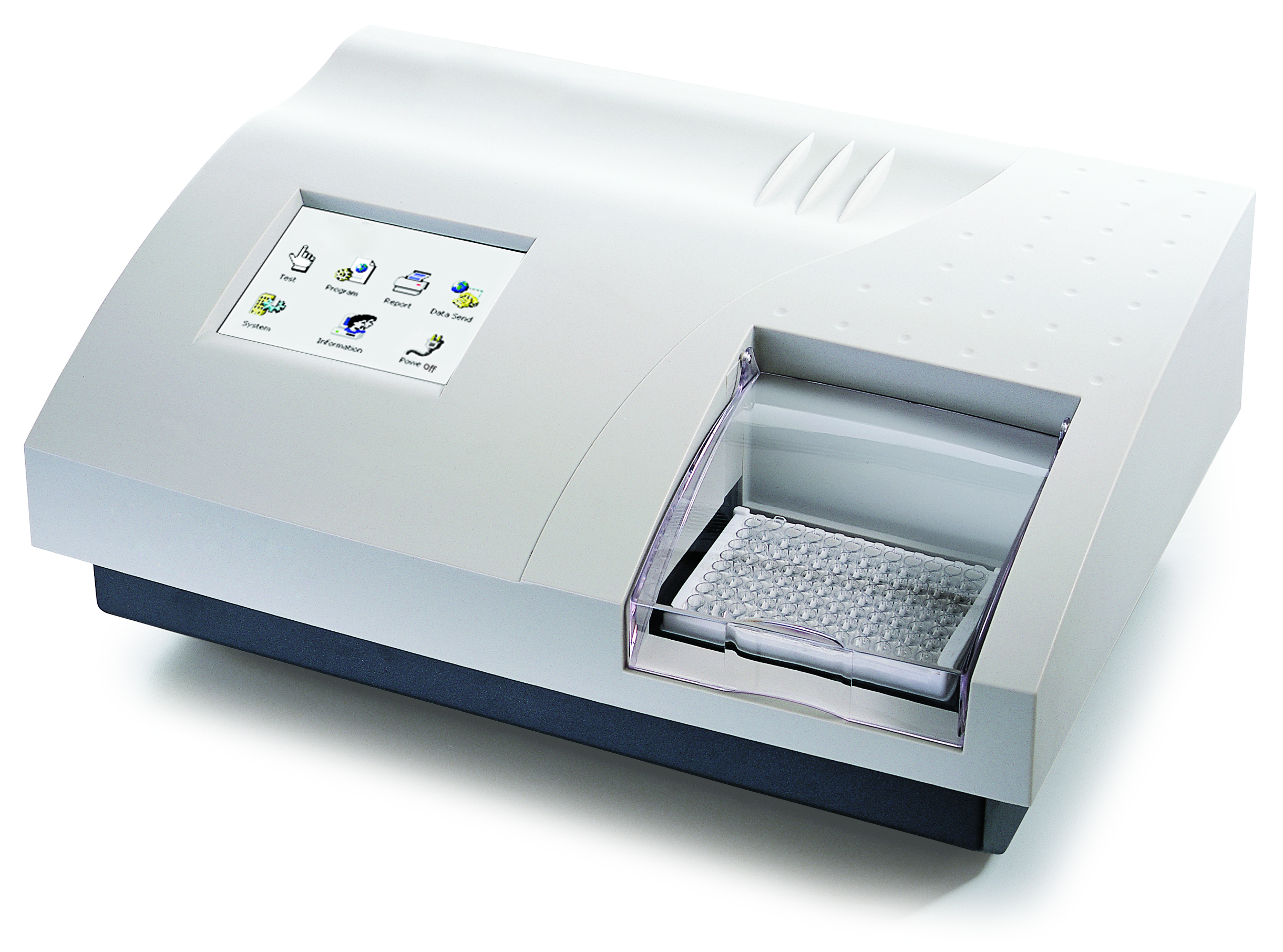

Semi Automatic Elisa Analyzer / Micro-plate Reader

Semi Automatic Elisa Analyzer / Micro-plate Reader

Model: LT-2100C

Technical Specifications:

Absorbance Range: 0 - 4.000Abs

Resolution: 0.001Abs(displayed),0.0001Abs(calculated)

Accuracy: ±0.1% or ±0.005Abs

Light Source: Halogen lamp, 8V/50W

Wavelength Accuracy: ± 1nm

Band width: 8nm

Wavelengths: 405, 450, 492, 630nm, 4 more filters optional

Type of Micro-plate: Standard with 96-well or other kind of micro-plate and strip

Calculation Method: ABS, %ABS, Cut-Off, Single Standard, Curve,

Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression

Reading Speed: 5 seconds for 96 well plate (single wavelength)

Shaking Plate: Shaking time and speed adjustable

Memory: More than 100 programs, up to 100,000 test results

Printer: All printers compatible with Windows

Interface: RS-232, PSTN (optional)

Display: 6” LCD

Input: Touch panel or mouse

Output: External printer (optional)

Power Supply: AC 110V - 220V ± 10%, 50-60Hz

Net weight: 8Kg

Dimension L×W×H(mm) :460×330×200

General Descriptions:

1. Semi automatic

2. Easy Windows operation system with touch screen or mouse, large LCD display

3. 8-channel optical fiber system enables 5 secs’ reading for the whole plate

4. Bichromatic measurement, calculation modes including ABS, Cut-off, Curve, Linear,

5. Log and Exponential regression

6. Random positive and negative control setting

7. Multi-assay enables up to 12 different assays on one plate

8. Large memory, up to 100 test protocols and 10,000 can be stored

9. Powerful QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional)

10. Plate shaking

11. Auto power-on self-check

12. Additional lamp saving

13. Multiform result output including patient comprehensive report

14. Ability to communicate with PC for data management(optional)

15. Easy maintenance
