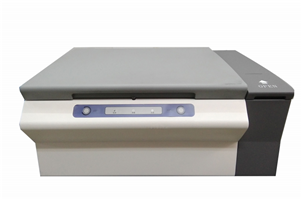

Semi-automatic Chemiluminescence Immunoassay Analyzer
l Magnetic particles are superparamagnetic
l Binding ability between antibody and antigen is 1000 times higher than microwell CLIA.
l Solid phase is separated thoroughly from the free phase to improve accuracy.
l Rapid assay speed, high sensitivity and wide linear range
l Test can be done 20 seconds later after adding substrate, which greatly increase the reaction rate
l Innovated glow-type luminescent substrate, reach plateau period fast with stable and accurate results.
l Special for the magnetic particles separation CLIA
l Dedicated sample tray, 60 positions
l Patented tube positioning device, to ensure consistency and improve repeatability
l Random combinations of test items
l Precise autosampler system to ensure the substrate adding precision
l Efficient automatic mixing system to improve the accuracy of the instrument
l Stable automatic incubation system to reduce the environmental impact
Technical Features
1. Model:CIA60
2. Detectable spectro range:300nm~650nm
3. Test speed:<10s /tube
4. Sampling system:Add substrate automatically
4. Background counting:≤300s-1(test temperature≤30℃)
5. Sensitivity: ≥500s-1/10-16mol/l ATP;
6. Linear range: When CV≤5%, Linear range is 300 s-1~1.2Ms-1。
7. Incubation temperature range: room temperature to 40℃; ±0.5℃
8. Stability: Under normal operating conditions, after analyzer works for continuous 8 hours , Instability ≤3%
9. Repeatability: CV≤3%
10. Accuracy:λ≤1%
11. Dimensions:59x 68 x37 cm
12. Weight:48kg
