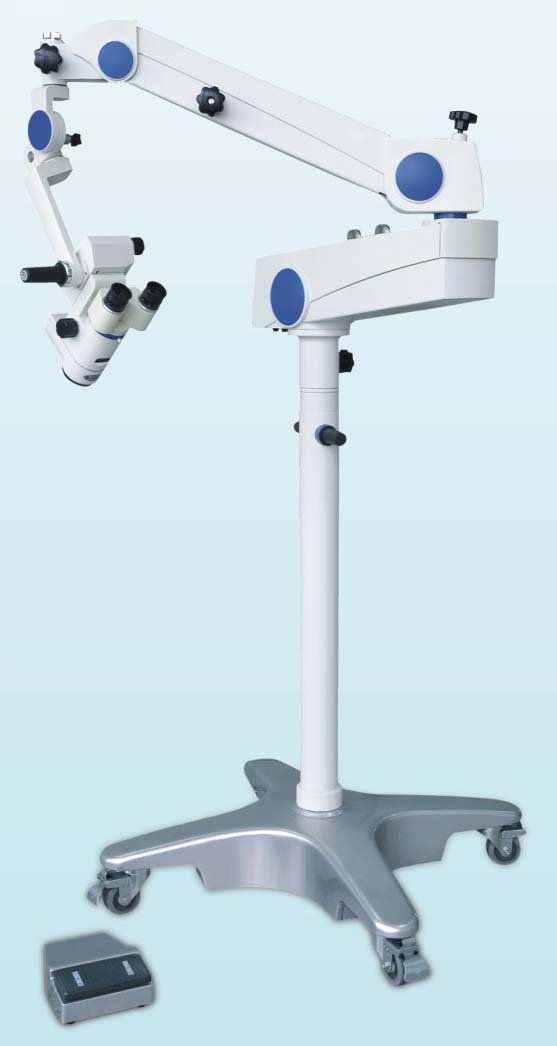

ENT/Neurosurgery/dental operation microscope LT-5A

LT-5/A ENT/Neurosurgery/dental operation microscope

MC-5/A operation microscope is the prince of the ‘little puppy’ kindred. It has only one binocular, (assistant binocular can be added if you need). But it’s the only simple one that has zoom lens and perfect depth of field. And the head of the microscope can stay in any angle you need. ASOM-5/A microscope was generally welcomed in E.N.T 、dental surgery and Neurosurgery. And now we have developed the new ASOM-5/A which can be hung on the wall, very light and convenient

Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm.

Binocular tube

high brightness 90°straight binocular tube

Magnification

6:1 manual continuous zoom, magnification 2x~12.5x; field of view Φ95~Φ16mm

X-Y movement device

X direction swing 45°, Y direction swing 45°

Coaxial illumination

illumination diameter of light spot Φ70mm, illumination intensity 60000lux

Objectives

f300mm (200mm, 250mm,350mm,400mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

Maximum length of arm: 1100mm

New stand

swing angle of the carrier arm 0 ~300°,height from objective to floor 730mm

Foot switch:  waterproof

Weight: 107KG
