Model: LT-4/A

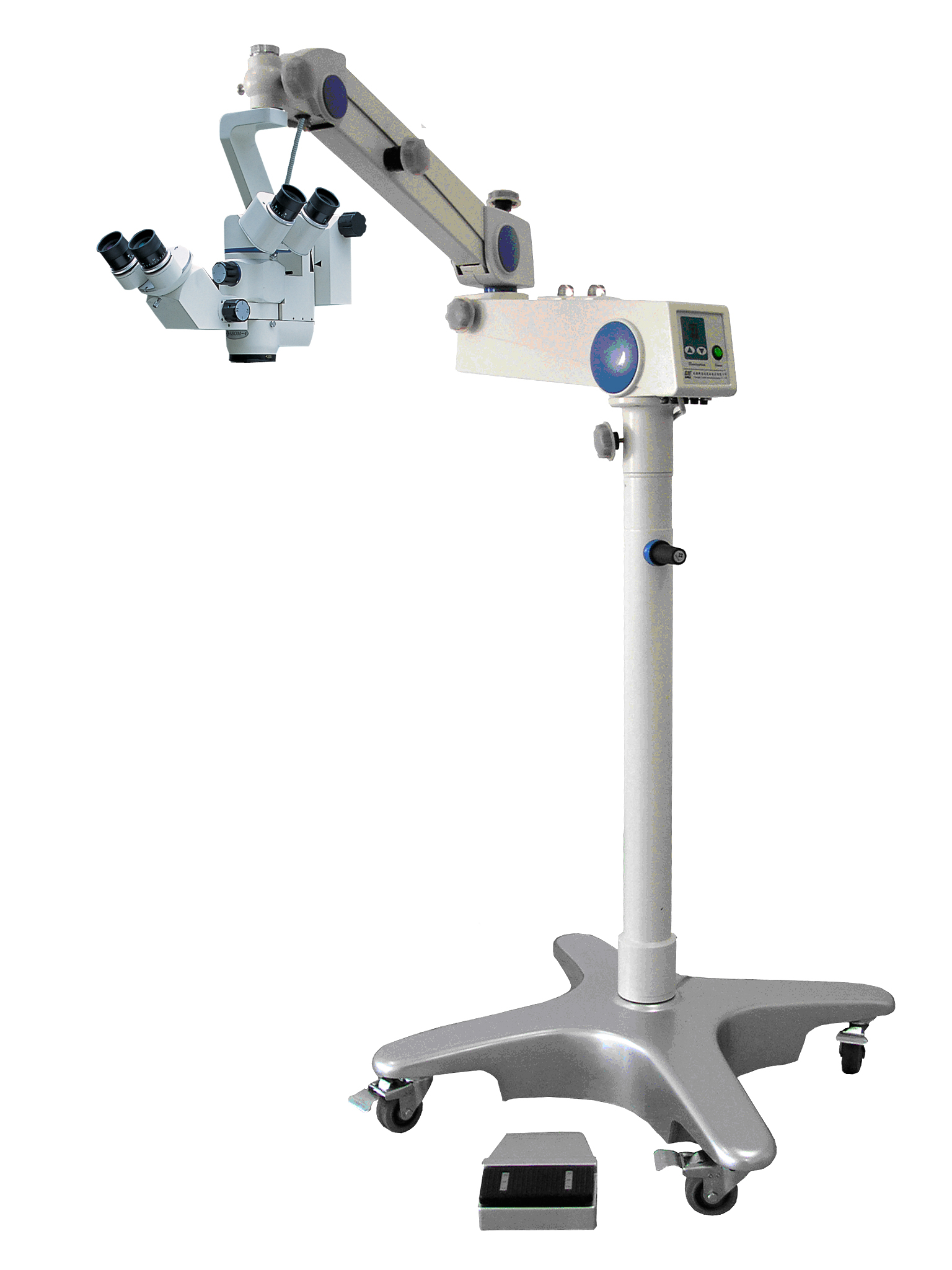

LT-4/A orthopedics operation microscope
The generalist of the “little puppy” family. The assistant binocular can fix in both 90°and 180°two station, so ASOM-4/A can be used in orthopedics,plastic,hand surgery and ophthalmology surgery.
Specification
Eyepieces
magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm.
Binocular tube
high brightness 45°binocular tube
Magnification
manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm
Coaxial assistant’s binocular tube
manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm
Coaxial illumination
illumination diameter of light spot Φ50mm, illumination intensity 60000lux
Objectives
f200mm(175mm, 250mm etc )
Focusing
motorized, range +/-25mm, speed 33s/whole distance
Maximum length of arm
1100mm
New stand
uptodate stand with new locking wheels
Foot switch
waterproof
Weight
107kg
