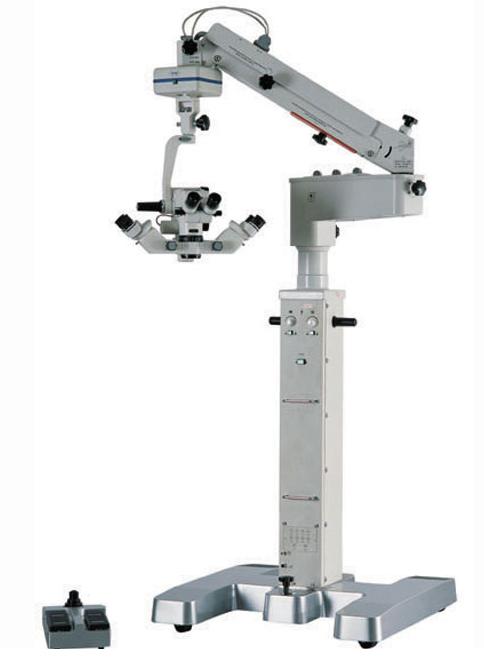

Multi-functional operation microscope LT-6C

LT-6/C Multi-functional operation microscope

The ASOM-6/C is the only model in the family of ASOM operation microscope which has a double assistant binocular system. It have perfect optics system and the biggest depth of field. It can be used in Neurosurgery, ophthalmology surgery, dentistry.

Specification

Double assistant’s binocular, new changing diaphragm give you perfect depth of field

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 180mm.

Binocular tube

30°~90°variable angle binocular tube, add new pupil distance adjustment

Magnification

6:1 zoom, motorized, magnification 4.5x~27.3x; field of view Φ45~Φ7.5mm

Coaxial assistant’s binocular tube

manual 3-step changer, total magnification 6.4x,10.8x,17.3x; field of view Φ31mm,Φ19mm,

Φ12mm

Coaxial illumination

illumination diameter of light spot Φ50mm, illumination intensity 100000lux

Objectives

f 200mm (175mm,250mm,300mm,350mm,400mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

X-Y translator

move in X-Y direction motorised, range +/-30mm

Maximum length of arm

1200mm

Stand

swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm

Foot switch

waterproof, 8 function steps

Weight

164kg
