Electrophoresis Power Supply

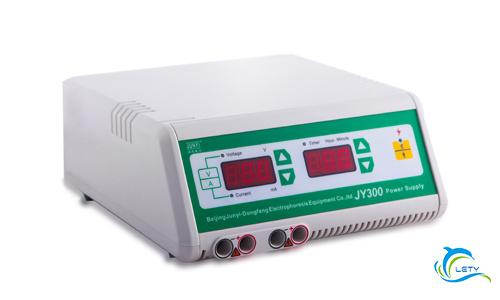

· JY300 Basic Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current

Output range: 5~300V、1~300mA、maximum 90W

Increment: 1V, 1mA

Timer Range: 1min~9hr, 59min

Display:  LED

Output jacks: Two sets of output jacks

Characteristic feature

• Molding shell, touch keys, microprocessor intelligent control;

• With automatic memory function;

• With standard, timing operation function;

• Automatic detection of no-load, over-load.

·

· JY600 Basic Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current

Output range: 5~600V、1~200mA、maximum 120W

Increment: 1V, 1mA

Timer Range: 1min~9hr, 59min

Display:  LED

Output jacks: Two sets of output jacks

Characteristic feature

• Molding shell, touch keys, microprocessor intelligent control;

• With automatic memory function;

• With standard, timing operation function;

• Automatic detection of no-load, over-load.

·              JY200C High current Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--200V, 1--2000mA, 1--200W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Molding shell, touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

· JY300C Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--300V, 1--400mA, 1--120W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Molding shell, touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

· JY300HC Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--300V, 1--1500mA, 1--450W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Molding shell, touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·          JY600C Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 10--600V, 1--500mA, 1--300W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Molding shell, touch keys, dual core microprocessor

intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

· JY600HC Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 10--600V, 1--500mA, 1--300W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Molding shell, touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

· JY1000C High Voltage Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 30--1000V, 1--500mA, 1--300W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

· JY1600C High Voltage Universal Power Supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--1600V, 1--100mA, 1--160W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·

JY-ECP3000 High-voltage power supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--3000V, 1--200mA, 1--200W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With automatic memory function;

• With standard, timing operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·

JY-ECPT3000 High-voltage power supply

Characteristic feature

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 20--3000V, 1--200mA, 1--200W.

Timer Range: 1min~99hr, 59min

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic feature

• Touch keys, dual core microprocessor intelligent control;

• Indicate the preset value and the actual output value at the same time;

• It can store 10 electrophoresis methods;

• With the temperature control operation, range of temperature is RT+10℃~65℃;

• With automatic memory function;

• With Standard, Timing, Temperature control operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating

.

· JY200E High-current Universal power supply

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--200V, 1--2000mA, 1--200W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic features

• Molding shell, touch keys, dual core microprocessor intelligent control;

• 0-9 digital button, make the operation more simple and convenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·  JY300E Universal power supply

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--300V, 1--400mA, 1--120W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic features

• Molding shell, touch keys, dual core microprocessor

  intelligent control;

• 0-9 digital button, make the operation more simple and convenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·            JY300HE Universal power supply

Technical specifications

Type of Output: Constant-Voltage, Current or Power

Increment: 1V, 1mA, 1W

Output Range: 5--300V, 1--1500mA, 1--450W.

Timer Range: 1min~99hr, 59min

V-hr Range: 1~99999V-hr/ Increment 1V-hr

Display:  LCD display with backlight

Output jacks: Four sets of output jacks

Characteristic features

• Molding shell, touch keys, dual core microprocessor

  intelligent control;

• 0-9 digital button, make the operation more simple andconvenient;

• Indicate the preset value and the actual output value at the same time;

• It can store 100 electrophoresis methods;

• With automatic memory function;

• With step-by-step control function (editable 10 groups, each group of up to make 10 program automatic connection operation);

• With a pause control function (including real-time tuning)

• With standard, timing, V-hr, step-by-step operation function;

• With constant voltage, constant current, constant power, misoperation, fault intelligent prompt functions;

• Automatic detection of no-load, over-load, short circuit, rapid resistance change, ground leak and system overheating.

·
