Electrophoresis apparatus

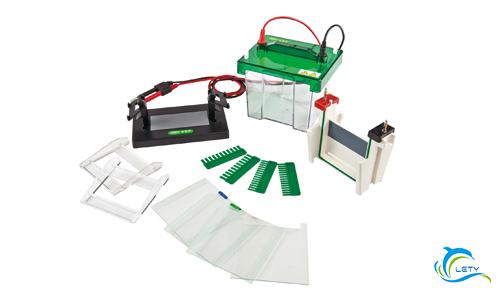

Mini-Protean Vertical Electrophoresis Cell SCZ2+
Technical specifications
Glass plate size(W×L):100×100 mm
Gel Size(W×L):82×88 mm
Gel thickness:0.75 、1.0、1.5(mm)
Gel amount:1~2(pieces)
Sample volume:(0.75mm)11、15 wells;(1.0mm)11、15wells;(1.5mm)11、15wells
Buffer Volume:~750(ml)
Dimension(L×W×H):150×120×115(mm)
Net weight:1.5(kg)
Characteristic feature
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
• High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
• Safety cover open button design, convenient opening the cover.
• With the background color, easy to be observed in the sample adding and electrophoresis process.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
