Electrophoresis apparatus

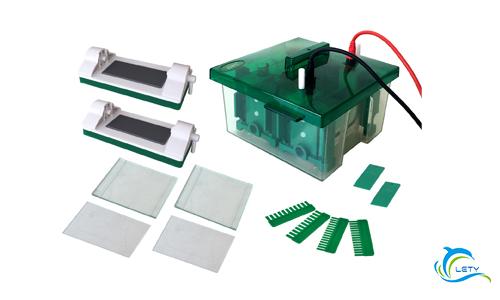

Vertical Mini Protean Electrophoresis Cell Mini-P4
Technical specifications
Glass plate size（W×L）:101×82 mm
Gel Size（W×L）:81×73 mm
Gel thickness: 1.0mm
Gel amount:1～4（pieces）
Sample volume:11~60
Buffer Volume:～1200ml
Dimension（L×W×H）:175×175×100mm
Net weight:2.5（kg）
Characteristic features
With two gel castings, can cast 1-4 plates of gels at the same time.
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel casting in original position, no need to move glasses from gal making to elelctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
• With the background color, making it easy to observe sample loading and electrophoresis running.
• With protective strip of positive electrode, it can prevent producing bubbles and also protect platinum silk from damage.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
