Electrophoresis apparatus

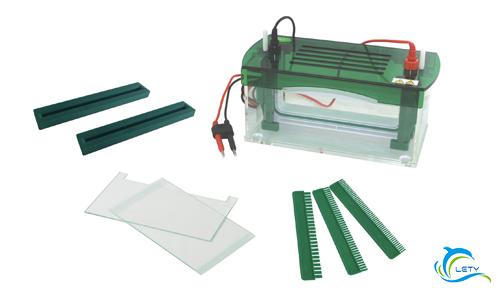

Vertical Electrophoresis Tank JX5
Technical specifications
Glass plate size（W×L）:216×110 mm
Gel Size（W×L）:186×95 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25、40、52wells
Buffer Volume:～1800（ml）
Dimension（L×W×H）:280×140×135（mm）
Net weight:3.2（kg）
Characteristic features
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device modular, you can make multi slab gel at the same time.
• Safety cover open button design, convenient opening the cover.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
