Electrophoresis apparatus

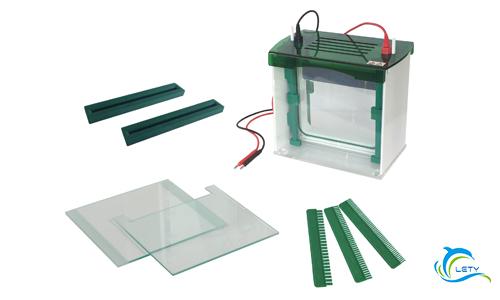

Vertical gel electrophoresis cell JX5L
Technical specifications
Glass plate size(W×L):216×220 mm
Gel Size(W×L):186×205 mm
Gel thickness: 1.0(mm)
Gel amount:1~2(pieces)
Sample volume:(1.0mm)25、40、52wells
Buffer Volume:~3500(ml)
Dimension(L×W×H):280×140×250(mm)
Net weight:5.6(kg)
Characteristic features
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device modular, you can make multi slab gel at the same time.
• Safety cover open button design, convenient opening the cover.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
