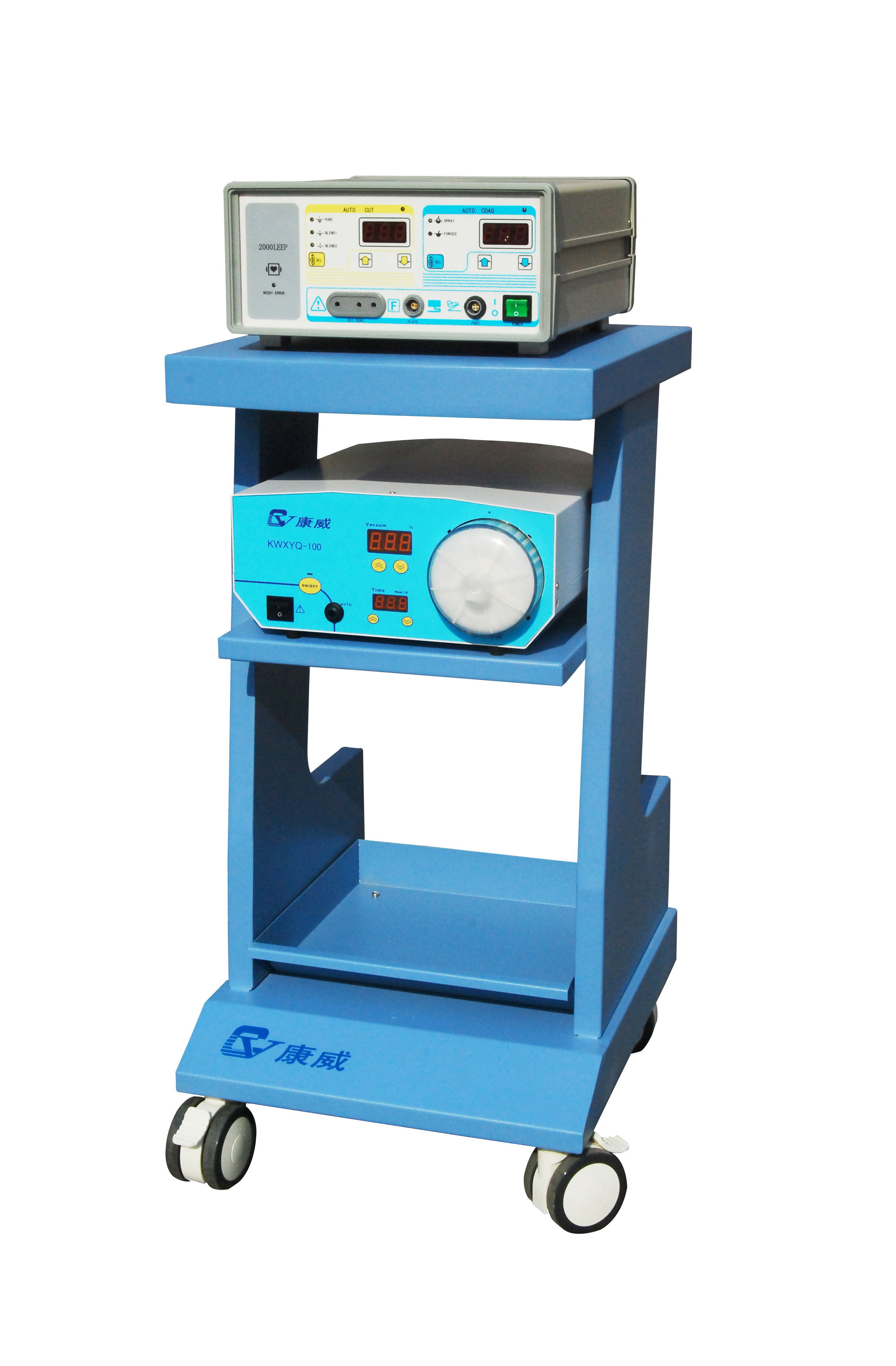

Electrosurgical Unit LEEP (Five working modes)

Electrosurgical Unit  LEEP (Five working modes)

Main Features

■Microcomputer control, can be controlled by hand or by foot.

■The generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.

■Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.

■Different electrodes have different effects in coagulation.

■An optional smoke evacuation system is available.

■Paticular illuminating ESU pencil can increase the clarity of wound healing.

Technical Specifications

Power: 220V±22V(110V±11V), 50Hz±1Hz

Operating frequency: 416kHz

Power rating:1100VA±10％

Five working modes:

◆Monopolar Cut

a) pure cut：1W～200W( Load 800Ω)

b) Blend1：1W～150W(Load 800Ω)

c) Blend2：1W～100W (Load 800Ω)

◆Monopolar Coag

d) Spray Coag：1W～80W( Load 800Ω)

e) Forced Coag：1W～120W( Load 800Ω)

◆Power Consumption : ≦1100VA(Cutting function 200W)

Surgical Smoke Evacuation

blowing rate: 100 l/min @ 6mm tube

Noise: <60dB(A)

Start Control: Manus/Foot/Synchronize

Suction Adjust: 10%－100%

Stop delay time: 0－60s

AC Power: AC90~250V, 50Hz

Power consumption: < 350W

Filter Characteristics: 99.999% @ 0.1-0.2μm

Active Carbon: 97% @ 1 year

Packing List

Mainframe 1set

Illuminating electrosurgical pencil 5pieces

Electrosurgical pad 10 pieces

Electrosurgical pad cable 1piece

Foot switch 1set

Electrodes 1case(10pieces)

Tip clean sponge 1piece

Vaginal Speculum 1piece

Fuse 3pieces

Power cord 1piece

Operating manual 1book

Demension
