Electrophoresis apparatus

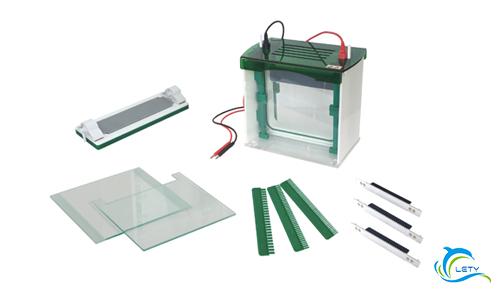

Rapid SSR vertical electrophoresis tank CZ-BL
Technical specifications
Glass plate size（W×L):216×220 mm
Gel Size（W×L）:186×205 mm
Gel thickness: 1.0（mm）
Gel amount:1～2（pieces）
Sample volume:（1.0mm）25,40,52wells
Buffer Volume:～3500（ml）
Dimension（L×W×H）:280×140×250（mm）
Net weight:5.6（kg）
Characteristic features
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device of normal position，don’t should to moving the glass plate from the process of making gel to electrophoresis.
• With the Precast gel inner core, do not affecting the operation of
gel making while the electrophoresis.
• Safety cover open button design, convenient opening the cover.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
