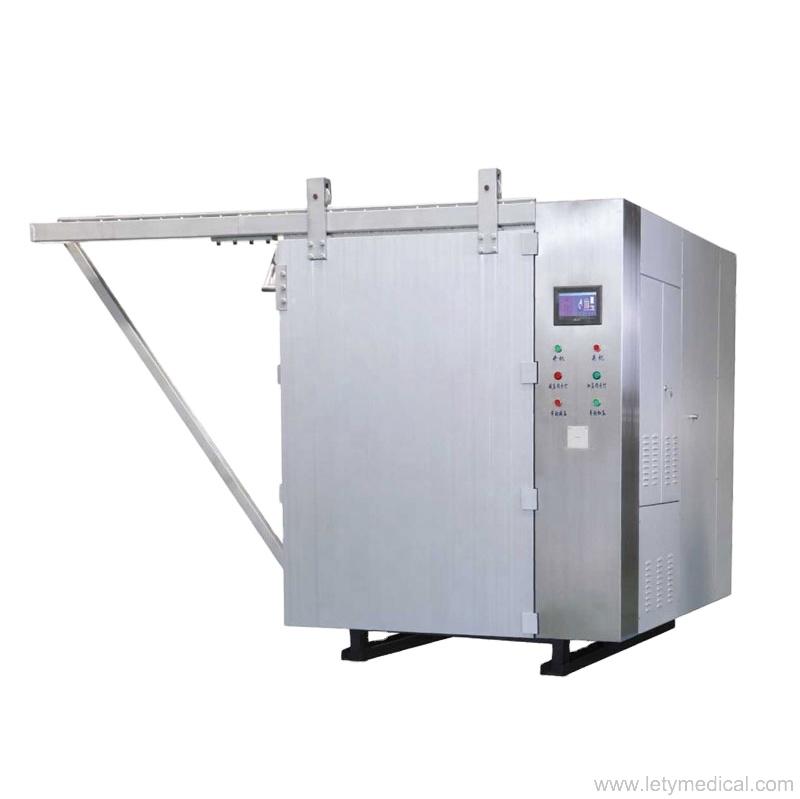

Medical Disposable Consumables Ethylene Oxide(EO) Sterilizer
Model: LTL-SQ-H
CHL-SQ-H ethylene oxide sterilizer is full automatic controlled by micro-computer. It is composed by control system, vacuum sterilization system, constant temperature system and residual gas process system. At present, it is widely used in medical and health, industry, foreign trade |
Description
CHL-SQ-H ethylene oxide sterilizer is full automatic controlled by micro-computer. It is composed by control system, vacuum sterilization system, constant temperature system and residual gas process system. At present, it is widely used in medical and health, industry, foreign trade, business, bank, archaeology, archaeological archives management and cultural relics management field.
Features
Negative pressure in whole cycle.
Ensures EO gas no leakage outside during work.
Safety EO gas punctured device.
Inside chamber , no need human intervention.
Efficient ventilation system.
Airation automatically ensure EO gas exhaust completely.
Processing real-time monitoring function:
Any abnormal in the chamber will cause machine alarm .
Audio reminder
EO gas closing and gas cylinder valve turn off once gas enough
Loading cart
Easy for operator load and unload cargo
Automatic sliding door
Press button for door open and closed .
Inner residual gas treatment system
For post sterilization gas processing , ensure the drainage is clean .
Parameters
Power supply | AC 380V 50 Hz |
Language | English / Chinese or Spanish/Chinese |
Gas | 80% EO + 20% Co2 mixture gas |
Capacity | 1-6 cubic meter |
Printer | Sterilization status and data record . |
Specification parameters
Trade name | 6-cubic ethylene oxide sterilizer |
Product model | CHL-SQ-H |
Product form | Automatic door cabinet |
Heating method | Electric heating |
Power source | Power source |
Power rate | 29KW |
Size of sterilization room | (length × width × height) : 3350×1200×1500mm |
Dimensions of outer case | (length × width × height) : 3550×1900×2050mm |
Sterilization room material | 304 anticorrosive stainless steel |
Carbon steel | (1.5mm thick) baking powder |
Sterilization temperature | 50℃ ±3℃ |
Working pressure |
-60kpa |
Maximum pressure resistance value | -140kPa |
Sterilization humidity | 45%-75% |
Gas selection | Mixed gas (80%EO, 15% CARBON dioxide,5% catalyst) |
Sterilization concentration of ethylene oxide | 1g/L |
Sterilization time | Adjustable from 0 to 99 hours |
Vacuum speed | Pump to -60kPa in 25 minutes |
