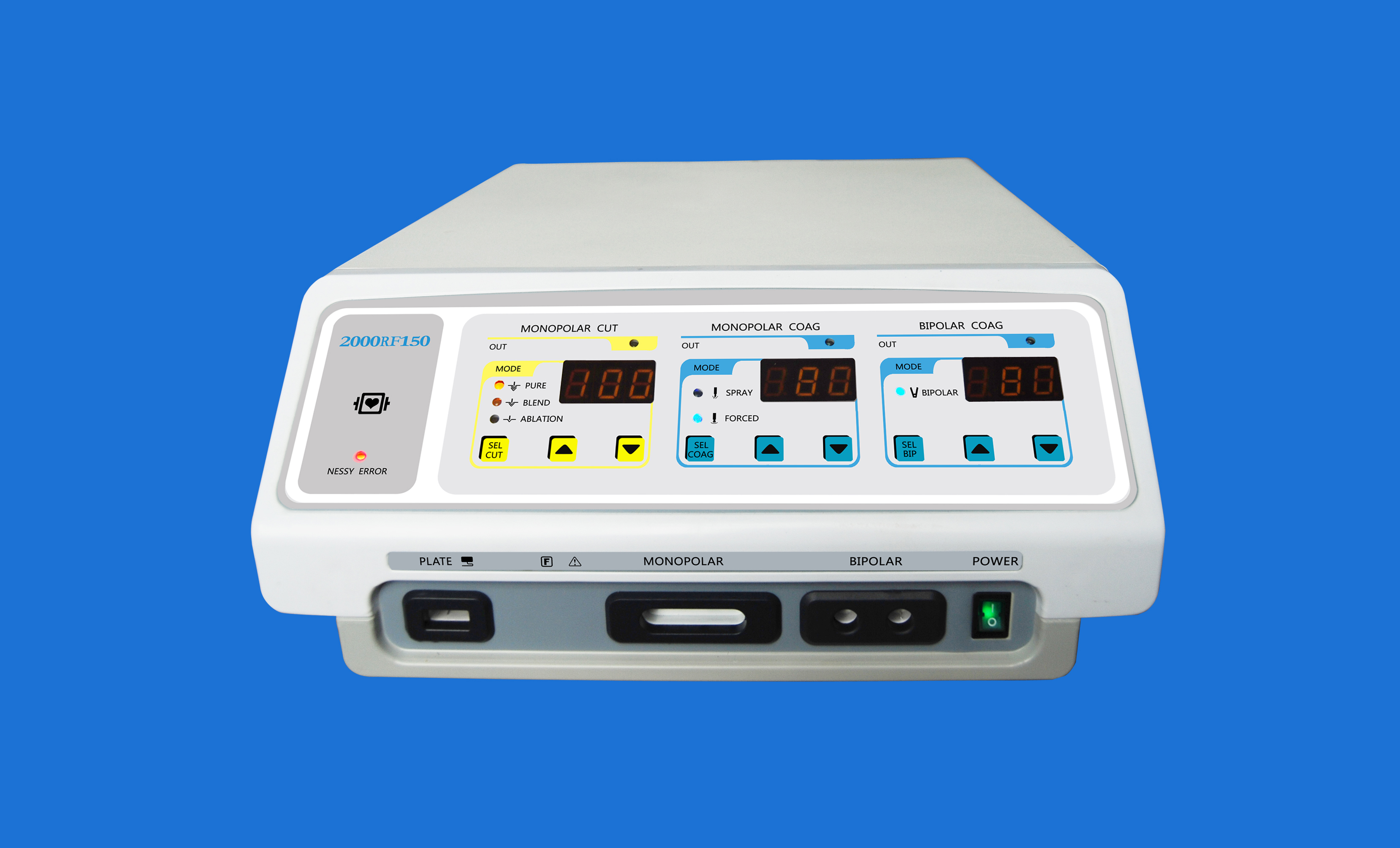

150W Radiofrequency Surgical Unit

Main Features

★ Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.

★ Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.

★ Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT,  Stomatology, etc.

★ Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

★ Both hand and foot controlled.

★ Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.

★ It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.

★ Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.

★ Protection against over-voltage and over-current.

★ Convection refrigeration without ventilator.

★ Mounted on a 4 wheels cart(optional).

Technical Specifications

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: a)Monopolar:4MHz  b) Bipolar:1MHz

Power rating: 1100VA±10％

Six working modes:

◆Mono-polar Cut

a) Pure cut：1W～150W( Load 700Ω)

b) Blend：1W～100W(Load 700Ω)

c) ablation：1W～100W(Load700Ω)

◆Mono-polar Coag

d) Spray Coag：1W～80W( Load 700Ω)

e) Forced Coag：1W～100W( Load 700Ω)

◆Bipolar

f) Bipolar Coagulation: 1W～120W( Load 200Ω)

◆Power Consumption: ≤1100VA

Configuration Sheet

Electrosurgical Pencil      5pcs

Neutral Electrode         1pcs

Neutral Electrode cable    1pcs

Footswitch                1set

Bipolar Forceps           1pcs

Bipolar forceps cable       1pcs

Electrodes                10pcs
