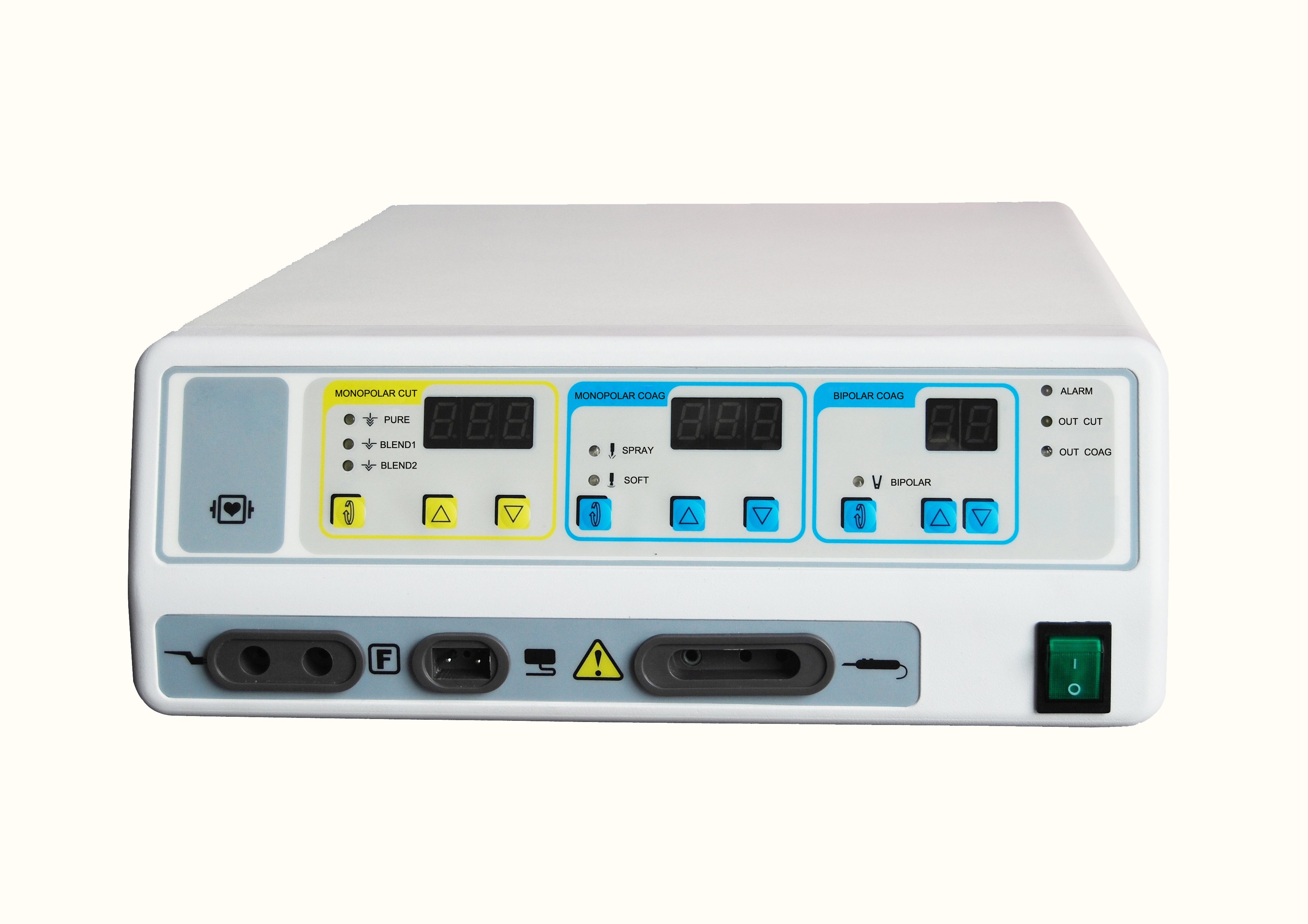

Six working modes Electrosurgical Generator

Main Features

★ Max 350W Electrosurgical Generator, with mono-polar and bipolar function.

★ Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.

★ Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

★ Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.

★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

★ Both hand and foot controlled.

★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

★ The unit always remember the last setting when it turned off.

★ Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

★ The ESU unit can be connected with laparoscope and endoscope, etc.

★ Protection against over-voltage and over-current.

★ Defibrillation protected.

★ Mounted on a 4 wheels cart(optional).

★ Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: 512KHz

Power rating: 1100VA±10％

Nine working modes:

◆Mono-polar Cut

a) Pure cut：1W～350W( Load 800Ω)

b) Blend1：1W～200W(Load 800Ω)

c) Blend2：1W～250W(Load 800Ω)

◆Mono-polar Coag

d) Spray Coag：1W～80W( Load 800Ω)

e) Soft Coag：1W～120W( Load 800Ω)

◆Bipolar

f) Bipolar Coagulation: 1W～70W( Load 200Ω)

◆Power Consumption: ≤1100VA

Configuration Sheet

Electrosurgical Pencil      5pcs

Electrosurgical Pad        10pcs

Electrosurgical pad cable   1pcs

Footswitch                1set

Bipolar Forceps           1pcs

Bipolar forceps cable       1pcs
