Vertical type

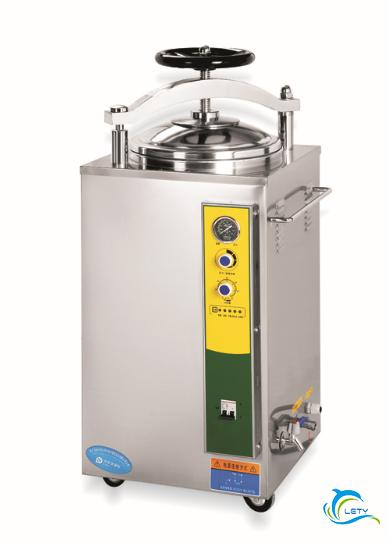

Electric heated vertical steam sterilizer LS-35HJ

Product description:
INQUIRY

ELECTRIC-HEATED VERTICAL STEAM STERILIZE
（hand round automatic）

Characteristics:
1.Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Pressure safety lock
4.Indicator light indicates working state
5.Over temperature & over pressure auto-protection
6.Double scale indication pressure gauge
7.Self inflating type seal
8.Safe protection of water lacking
9.Automatically shut off with beep reminding after sterilization
10.Easy to operate，safe and reliable
11.With two stainless steel sterilizing baskets

Technical Data:

Model technical data	LS-35HJ	LS-50HJ	LS-75HJ	LS-100HJ
Chamber volume	35L(φ318×450)mm	50L(φ340×550)mm	75L(φ400×600)mm	100L(φ440×650)mm
working pressure	0.22MPa			0.14MPa
Working temperature	134℃			126℃
Max working pressure	0.23 Mpa			0.165MPa
Heat average	≤±1℃
Timer	0～60min
Adjustment of temperature	105～134℃			105～126℃
Power	2.5Kw/AC220V.50Hz	3Kw /AC220V.50Hz	4.5KW /AC220V.50Hz
Overall dimension	450×450×1010(mm)	510×470×1130(mm)	560×560×1120(mm)	540×560×1250(mm)
Transport dimension	570×550×1150(mm)	590×590×1280(mm)	650×630×1280(mm)	680×630×1370(mm)
G.W/N.W	72Kg/ 56Kg	88Kg/ 68Kg	100Kg/80Kg	110 Kg/85Kg
