Vertical type

  • Vertical pressure steam sterilizer LS-35LD
Vertical pressure steam sterilizer LS-35LD

Vertical pressure steam sterilizer LS-35LD

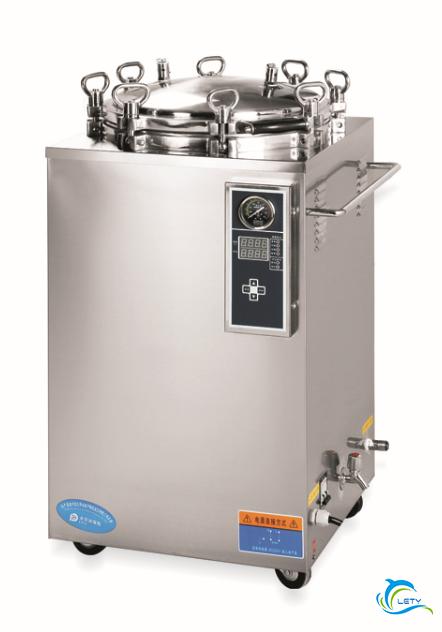

VERTICAL  PRESSURE STEAM STERILIZER

(Digital Display Automation )

Characteristics:

1Fully stainless high-alloy steel structure

2Digital display of working status, touch of key

3Manual or semi-automatic control

4Auto discharge the cool air, and steam discharging automatically after sterilization

5Automatically shut off with beep reminding after sterilization

6:The accident protection system

7:Automatic off of heating elements at reducing of a water level

8:Blocking top cover at working

9:Blockage of starting at opening

10:Heater protection sensor

11:Pressure and water level control

12:With three stainless steel sterilizing baskets

13:Easy to operate, safe and reliable

14:The drying system is optional, which can be equipped according to the customers request Technical Data

Model technical data

LS-35LD

LS-50LD

LS-75LD

LS-100LD

Chamber volume

35L(φ318×450)mm

50L(φ340×550)mm

75L(φ400×600)mm

100L(φ440×650)mm

working pressure

0.1-0.22MPa

Working temperature

120-134

Max working pressure

0.23 Mpa

Heat average

≤±1

Timer

099min or 099hour59min

Adjustment of temperature

105134

Power

2.5Kw/AC220V.50Hz

3Kw /AC220V.50Hz

4.5KW AC220V.50Hz

Overall dimension

480×460×850(mm)

520×520×980(mm)

560×560×980(mm)

590×590×1080(mm)

Transport dimension

570×550×970(mm)

590×590×1110(mm)

650×630×1150(mm)

680×650×1220(mm)

G.W/N.W

56Kg/ 42Kg

68Kg/50Kg

90Kg/70Kg

105Kg/85Kg
