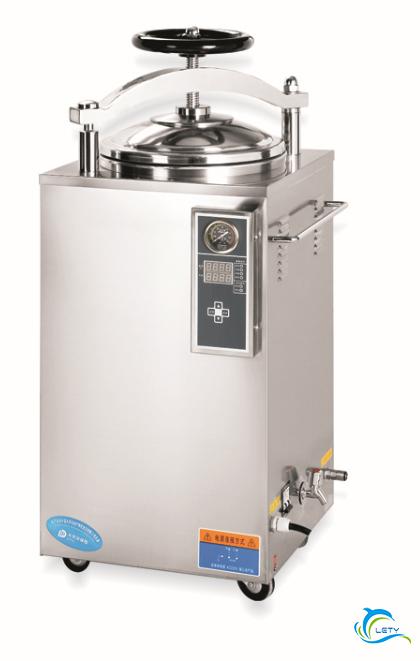

VERTICAL PRESSURE STEAM STERILIZER
(Digital Display Automation )
Characteristics:
l .Fully stainless steel structure
2.Hand wheel type of quick-open door structure
3.Door safety lock system
4.Digital display of working status,touch of key
5.Auto discharge the cool air,and steam discharging auto matically after sterilization
6.Over temperature&over pressure auto-protection
7.Safe protection of water lacking
8.Self-inflating type seal
9.Automatically shut off with beep reminding after sterilization
10.Used for sterilization of medical instruments, medical cotton products.
11.Fully stainless steel SUS304/AISI 304 -3mm
12.24 months warranty
13.Possible to install drying system according request
Technical Data:
|
Model technical data |
LS-35HD |
LS-50HD |
LS-75HD |
LS-100HD |
|
Chamber volume |
35L(φ318×450)mm |
50L(φ340×550) mm |
75L(φ400×600) mm |
100L(φ440×650) mm |
|
working pressure |
0.22MPa |
0.14 MPa |
||
|
Working temperature |
134℃ |
126℃ |
||
|
Max working pressure |
0.23 Mpa |
0.165 Mpa |
||
|
Heat average |
≤±1℃ |
|||
|
Timer |
0～99min or 0～99hour59min |
|||
|
Adjustment of temperature |
105～134℃ |
105~126℃ |
||
|
Power |
2.5Kw/AC220V.50Hz |
3Kw/AC220V.50Hz |
4.5Kw/AC220V.50Hz |
|
|
Overall dimension |
450×450×1010(mm) |
510×470×1130(mm) |
560×560×1120 (mm) |
540×560×1250 (mm) |
|
Transport dimension |
570×550×1150(mm) |
590×590×1280(mm) |
650×630×1280(mm) |
680×630×1370(mm) |
|
G.W/N.W |
72Kg/56Kg |
88Kg/ 68Kg |
100Kg/ 80Kg |
110Kg/ 85Kg |
