Vertical type

  • Vertical pressure steam sterilizer LS-35LJ
Vertical pressure steam sterilizer LS-35LJ

Vertical pressure steam sterilizer LS-35LJ

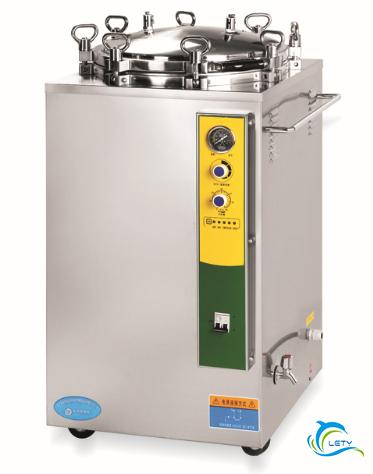

VERTICAL PRESSURE STEAM STERILIZER

Characteristics:
1.Fully stainless steel structure
2.Indicator light indicates working state
3.Over temperature&over pressure auto-protection
4.Double scale indication pressure gauge
5.Safe protection of water lacking
6.Automatically shut off with beep reminding after sterilization
7.Easy to operate,safe and reliable
8.With two stainless steel sterilizing baskets

Technical Data

Model

technical data

LS-35LJ

LS-50LJ

LS-75LJ

LS-100LJ

Chamber volume

35L(φ318×450) mm

50L( φ340×550) mm

75L(φ400×600) mm

100L(φ440×650) mm

working pressure

0.22MPa

Working temperature

134

Max working pressure

0.23 Mpa

Heat average

≤±1

Timer scope

060min

Temperature scope

105134

Power

2.5KW/AC220V.50Hz

3KW /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall dimension

480×460×850(mm)

520×520×980(mm)

560×560×980(mm)

590×590×1080(mm)

Transport dimension

570×550×970(mm)

590×590×1110(mm)

650×630×1150(mm)

680×650×1220(mm)

G.W/N.W

56Kg/ 42Kg

68Kg/ 50Kg

90Kg/70Kg

105Kg/85K
