Operation Microscope

  • Ophthalmic operating microscope LT- 3B
Ophthalmic operating microscope LT- 3B

Ophthalmic operating microscope LT- 3B

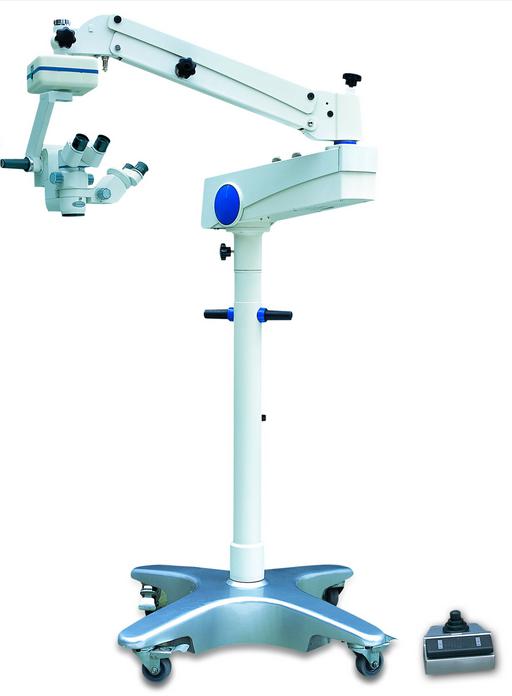

LT- 3/B ophthalmic operating microscope

LT-3/B is designed for ophthalmology too. It have a X-Y translation machine on the end of the second arm, so the head of the operation microscope can move left, right, forward and back. The optics system is a copy of LT-3/A.



Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm

Binocular tube

high brightness 45°binocular tube

Magnification

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial assistant’s binocular tube

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial illumination

illumination diameter of light spot Φ50mm, illumination intensity 60000lux

Objectives

f200mm(175mm, 250mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

Maximum length of arm

1100mm

Stand

bran-new economical stand

Foot switch

waterproof

Weight

115kg
