Ophthalmic operation microscope LT-3A

Ophthalmic operation microscope LT-3A

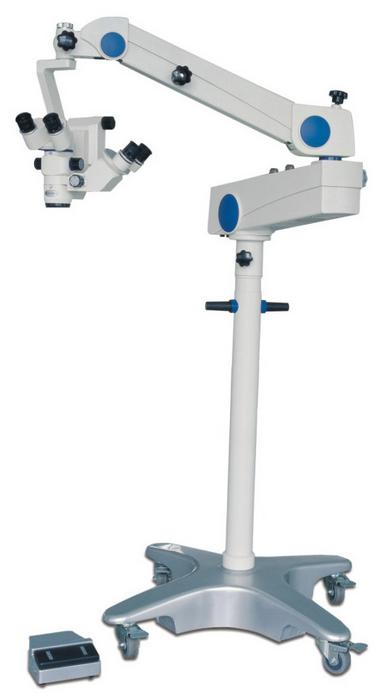

LT-3/A ophthalmic operation microscope

LT-3/A, 4/A and 5/A is the simplest models. Because of the light framework and the fashionable shape, doctors gave a lovely name to them ‘little puppy’.

The LT-3A is designed for ophthalmology.

Specification

Eyepieces

magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D. Focus of second object lens 125mm



Binocular tube

high brightness 45°binocular tube

Magnification

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial assistant’s binocular tube

manual 3-step changer, total magnification 6x,10x,16x; field of view Φ34mm,Φ20mm,Φ13mm

Coaxial illumination

illumination diameter of light spot Φ50mm, illumination intensity 60000lux

Objectives

f200mm(175mm, 250mm etc )

Focusing

motorized, range +/-25mm, speed 33s/whole distance

Maximum length of arm

1100mm

New stand

uptodate stand with new locking wheels

Foot switch

waterproof

Weight

107kg
